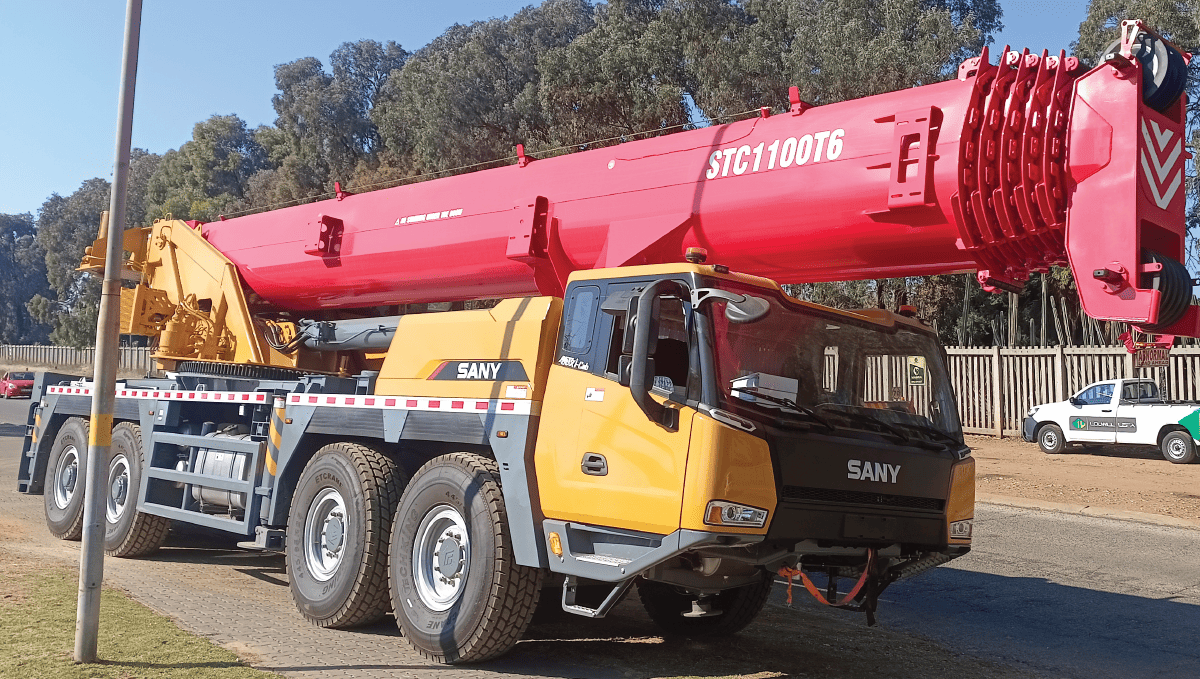

STC1100T6
The Giant of the Fleet 110 tons of raw lifting power. Designed for mega‑projects, bridges, and energy installations where maximum strength is non‑negotiable.
The Giant of the Fleet 110 tons of raw lifting power. Designed for mega‑projects, bridges, and energy installations where maximum strength is non‑negotiable.
The Giant of the Fleet 110 tons of raw lifting power. Designed for mega‑projects, bridges, and energy installations where maximum strength is non‑negotiable.
DIMENSIONS
| Overall Length | 14 840mm |
| Overall width | 2 800mm |
| Overall height | 4 000mm |
| Gross weight | 48 000kg |
| Min. Ground clearance | 357mm |
| Outrigger span (longitudinal x transverse) | 8m x 6.53m |
| Wheelbase | 8 x 4 x 8 |
Performance
| Lifting capacity | 110t |
| Max. traveling speed | 85km/h |
| Fuel consumption | 45L |
| Tail slewing radius | 4.47mm |
| Engine Model | DF Cummins ISLe375 30 |
| Max. engine power | 275/2100 kW/rpm |
| Max. engine torque | 1550/1400 N•m/rpm |
Max. Lifting Momentum
Boom length
Max. lifting height
